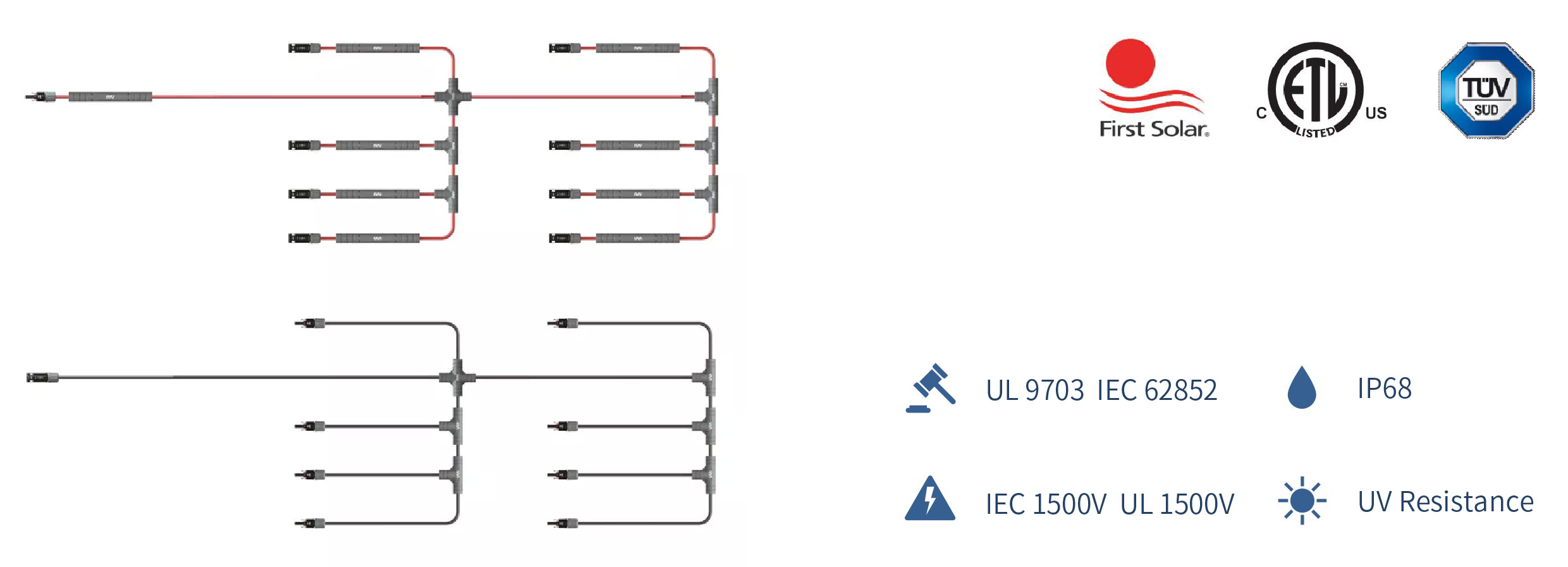

MC4 Branch Harness – H6 U Series: H6 4U/8U
MC4 Branch Harness – H6 U Series: H6 4U/8U
NIU Power H6 U Branch Harness use high quality materials that guarantee long-term reliability. H6 Branch Harness have IP68 U water-proof rating and can be used in a wide operating temperature range from -40 °C to 85 °C. NIU Power H6 U Branch Harness reduces the specialized labor required in your installation, making the integration of solar panels a breeze. With harnesses custom manufactured for your specific site, both labor and material costs are significantly reduced. The simplified design and robust construction also increase reliability, making the Interconnect System a perfect solution for any project.
| Technical Data | ||||||||||||||
| Rated Voltage | DC 1500V | |||||||||||||
| Junction Rated Current | Max 70A | |||||||||||||
| Max Input Rated Current Protection in Strings | Max 32A | |||||||||||||
| Max Output Rated Current Protection in Bus | Max 50A | |||||||||||||
| Ambient temperature | IEC: -40℃ up to +85℃ | |||||||||||||
| Contact Resistance | ≤0.05mΩ | |||||||||||||
| Pollution Degree | Class II | |||||||||||||
| Protection Degree | Class II | |||||||||||||
| Fire Resistance | UL94-V0 | |||||||||||||
| Rated Impulse Voltage | 16KV | |||||||||||||
| Locking System | NEC Locking Type | |||||||||||||
| Order Data | ||||||||||||
| TYPE | 1500V Cable Spec | Input String Fuse | Output Bus Fuse | Connectors | ||||||||
| H6 nU P | Input: n Branch; Output: 1 Branch Cable:2.5mm2~16mm2/ 14AWG~6AWG |
n x Max 32A | Option: 1x Max 50A |
Option: All Brands Solar connectors | ||||||||
| H6 nU N | n x Max 32A | |||||||||||
| Remark:H series harnesses use high quality weather resistance materials that guarantee long-term reliability. H series Harnesses could match 2.5 mm2 to 240 mm2 cables, it could be wildly used in different applications. H series harnesses have IP68 water-proof rating and can be used in a wide operating temperature range from -40 °C to 85 °C. | ||||||||||||
