AC Connection Cables

AC Connection Cables

NIU Power | PV Connectors

Packaging Capacity

Incoterm

Model No.

AC Connection Cables

AC Connection Cables

Product Overview

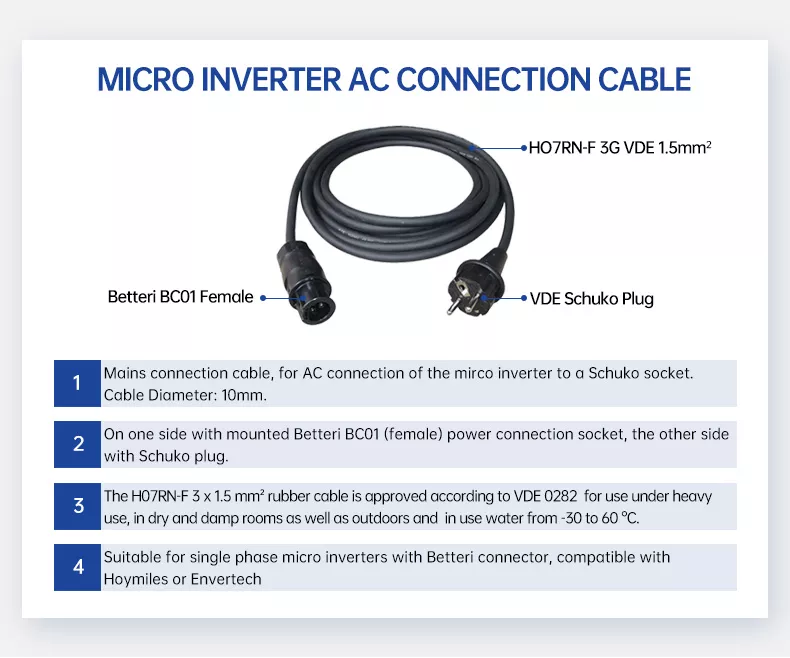

ABUIABACGAAgzqS2oQYo8MGs QMwlgY4kgU.jpg

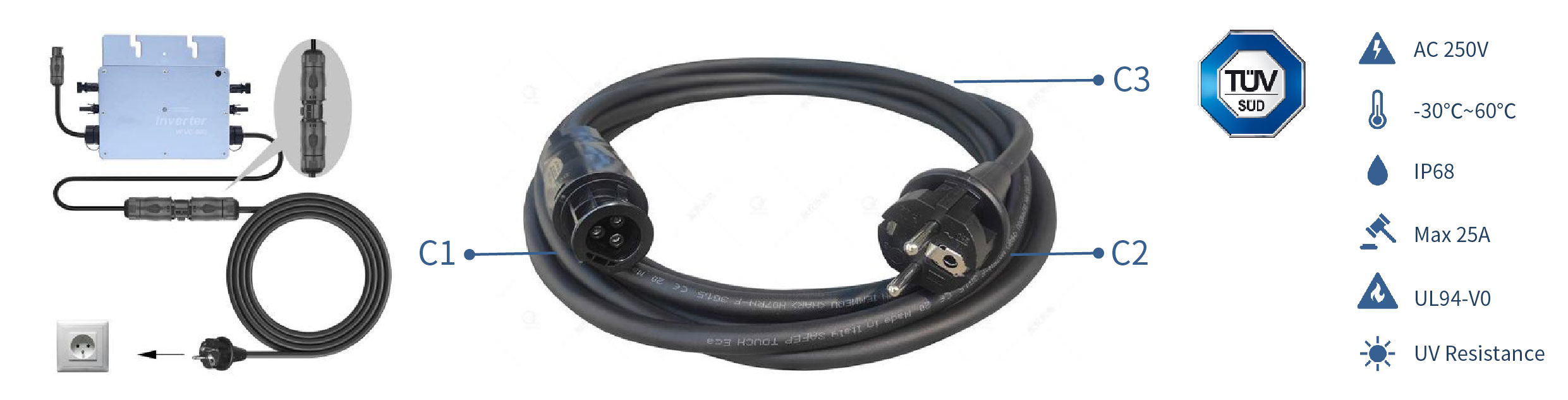

dsp 03 3

Order Data：BC01 Female Connector to VDE Schuko Plug

BC01 Female could be compatible with HoymilesDeyeEnvertechBosswerkTSUN-TSOL micro inverters.
PN C1 C2 C3 Length/m Remark
A5J301 Betteri BC01 Female H07RN-F 3G VDE 3*1.5mm2 VDE Schuko Plug 5m AC250V,15A,5m
A5J302 10m AC250V,15A,10m
A5J303 15m AC250V,15A,15m
A5J304 20m AC250V,15A,20m
A5J305 30m AC250V,15A,30m
A5J306 Betteri BC01 Female H07RN-F 3G VDE 3*2.5mm2 VDE Schuko Plug 5m AC250V,25A,5m
A5J307 10m AC250V,25A,10m
A5J308 15m AC250V,25A,15m
A5J309 20m AC250V,25A,20m
A5J310 30m AC250V,25A,30m
A5J311 Betteri BC01 Female H07RN-F 3G VDE 3*4.0mm2 VDE Schuko Plug 5m AC250V,25A,5m
A5J312 10m AC250V,25A,10m
A5J313 15m AC250V,25A,15m
A5J314 20m AC250V,25A,20m
A5J315 30m AC250V,25A,30m
Remark:The harness could match 3*1.5mm2 to 3*4mm2 cables, they could be wildly used in different applications. The harness series connectors have IP67 water-proof rating and can be used in a wide operating temperature range from -30 °C to 60 °C.Customized options available, for more information, please contact NIU Power sales team: Marketing@niu-power.com





Product Overview：A5-3CF to VDE Schuko Plug

dsp 03 3

Order Data：A5-3C Female Connector to VDE Schuko Plug

A5-3CF is compatible with BC01 Male. It also could be compatible with HoymilesDeyeEnvertechBosswerkTSUN-TSOL micro inverters.
PN C1 C2 C3 Length/m Remark
A5J316 A5-3P Female (Compatible with BC01 male) H07RN-F 3G VDE
3*1.5mm2		 VDE Schuko Plug 5m AC250V,15A,5m
A5J317 10m AC250V,15A,10m
A5J318 15m AC250V,15A,15m
A5J319 20m AC250V,15A,20m
A5J320 30m AC250V,15A,30m
A5J321 A5-3P Female (Compatible with BC01 male) H07RN-F 3G VDE
3*2.5mm2		 VDE Schuko Plug 5m AC250V,25A,5m
A5J322 10m AC250V,25A,10m
A5J323 15m AC250V,25A,15m
A5J324 20m AC250V,25A,20m
A5J325 30m AC250V,25A,30m
A5J326 A5-3P Female (Compatible with BC01 male) H07RN-F 3G VDE
3*4.0mm2		 VDE Schuko Plug 5m AC250V,25A,5m
A5J327 10m AC250V,25A,10m
A5J328 15m AC250V,25A,15m
A5J329 20m AC250V,25A,20m
A5J330 30m AC250V,25A,30m
PN Name IP PIC Material Remark

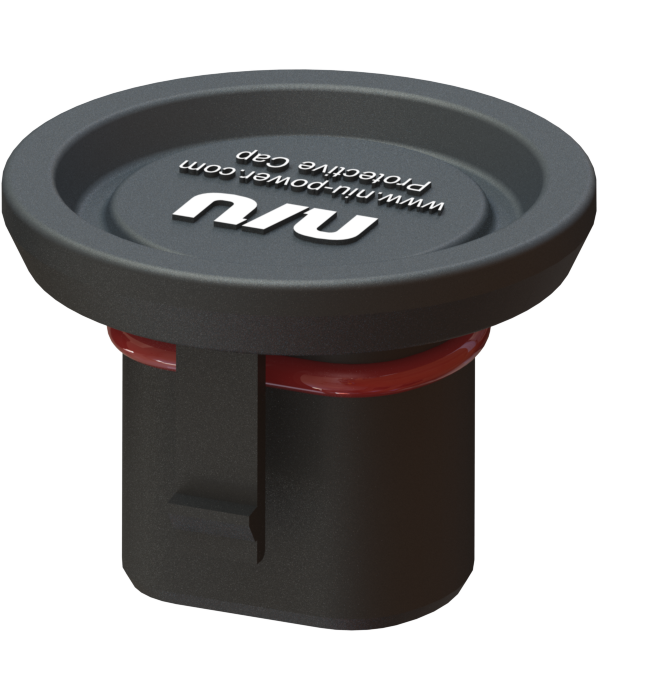

A5J401 Female Connector
water proof Plug		 IP68 表格图1 PPO+Rubber

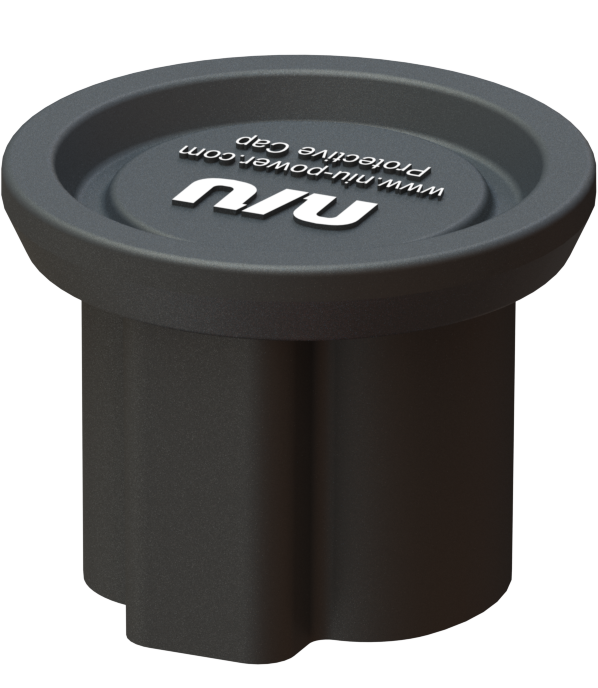

A5J402 Male Connector
water proof Plug		 IP68 表格图2 PPO

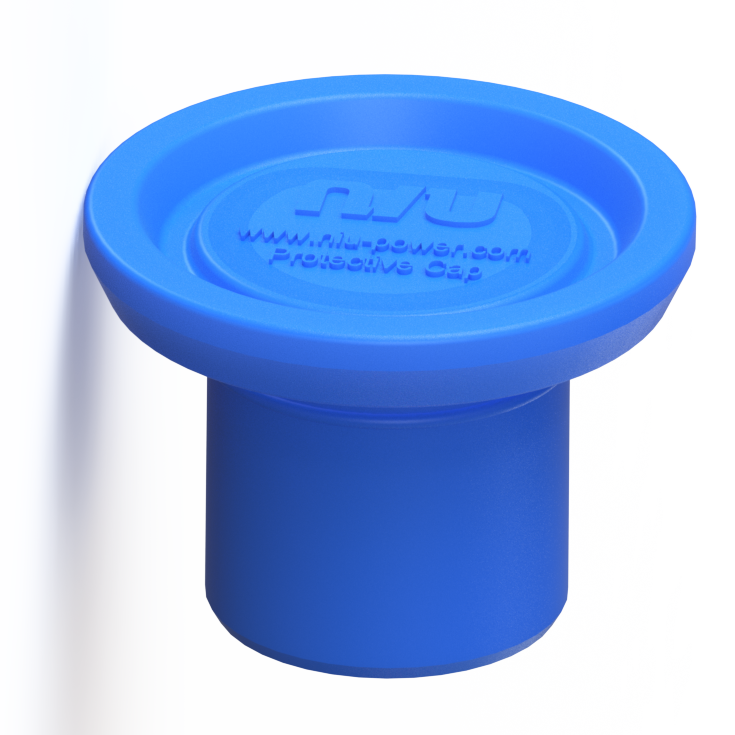

A5J403 Female Connector
dust proof Plug		 IP51 表格图3 TPE

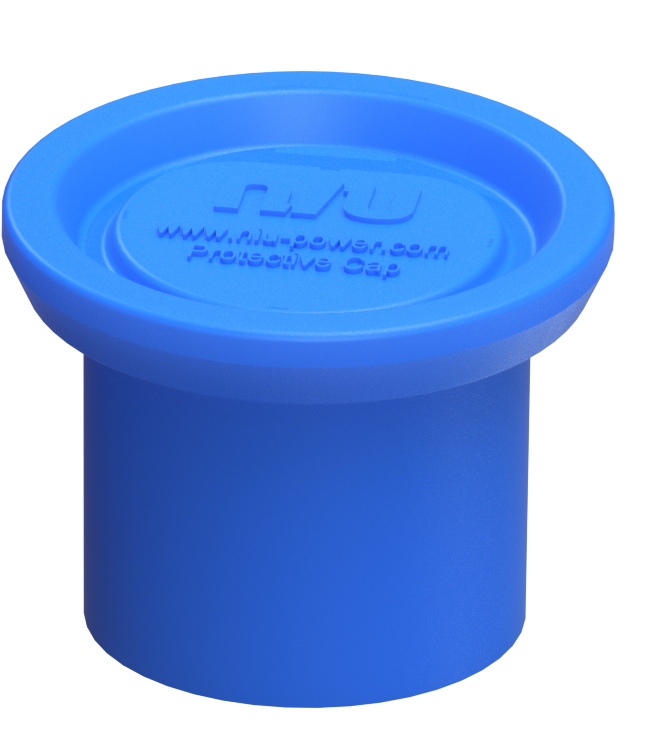

A5J404 Male Connector
dust proof Plug		 IP51 表格图4 TPE
