A6 B Mini Series Solar Inline Fuse
NIU Power | PV Connectors · Wire Harness
Packaging Capacity
Incoterm
Model No.

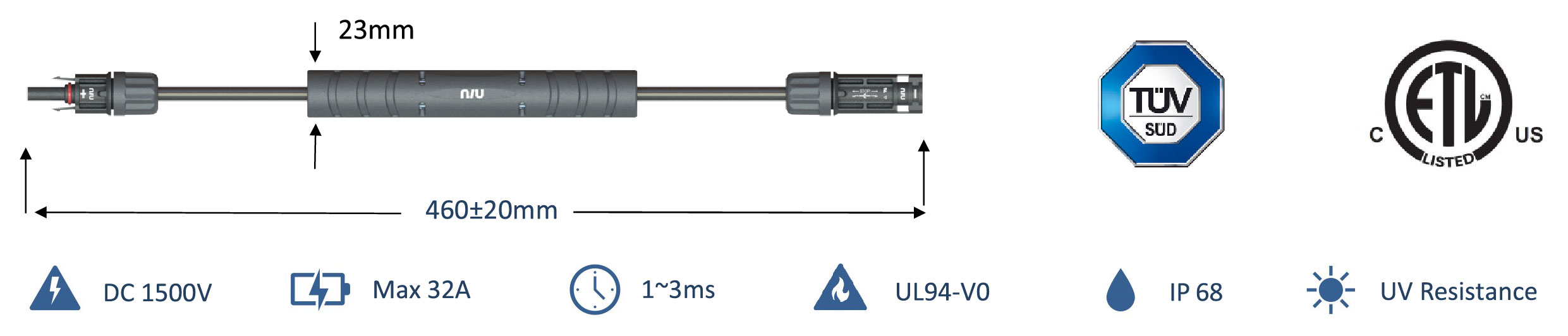

A6 B Mini Series Solar Inline Fuse
A6 B Mini Series Solar Inline Fuse
A6 B Mini Fuse Series use high quality weather resistance materials to seal the fuse units in line.A6 B Mini Series could match 2.5 mm2 to 6 mm2 cables, it could be wildly used in different applications. The lower contact resistance and higher current transfer capability ensure high product efficiency. A6 B Mini Series have IP68 water-proof rating and can be used in a wide operating temperature range.
A6 B Mini 系列光伏保险丝模组采用高品质绝缘耐候材料对保险丝管芯进行包塑密封，可保障产品在户外长期安全可靠使用。产品可适配2.5 平方到6 平方线缆，具有更广的应用范围。包塑工艺具有更低电阻、更高的可靠性和更大电流传输能力。
| Technical Data | |||||||
| Rated Voltage 额定电压 | DC 1500V | ||||||
| Rated Current 额定电流 | Max 32A | ||||||
| Fuse Dimension 管芯尺寸 | 10mm*85mm | ||||||

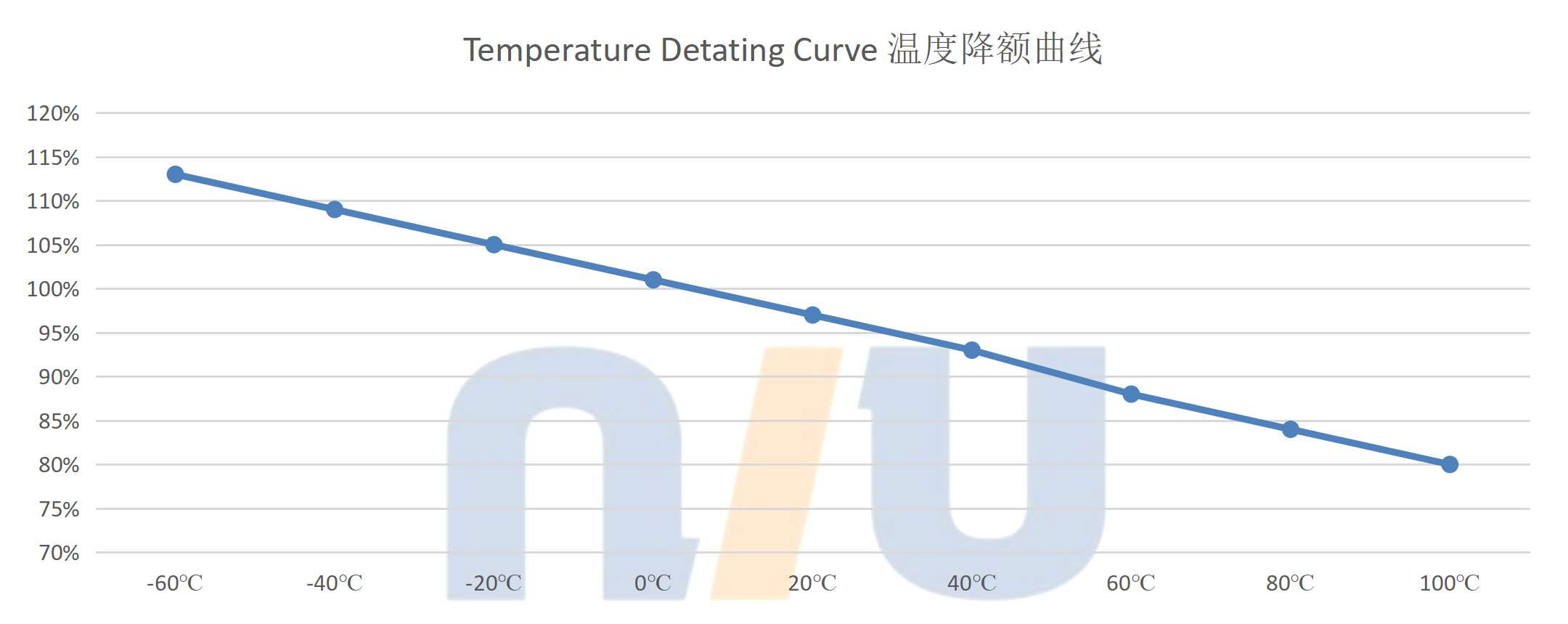

| Ambient Temp 工作温度 | -40℃ ~ +85℃ | ||||||
| IP 防护等级 | IP 68 | ||||||
| Rated Breaking Capacity 额定分断电流 | 30KA@1500V | ||||||
| Time Constant 时间常数 | 1-3ms | ||||||
| Pollution Degree 污染等级 | Class II | ||||||
| Protection Degree 保护等级 | Class II | ||||||
| Fire Resistance 阻燃等级 | UL94-V0 | ||||||
| Rated Impulse Voltage 额定浪涌电压 | 16KV | ||||||
| Locking System 锁扣 | NEC Locking Type | ||||||
| Remark: Customized options available, for more information, please contact NIU Power team: Marketing@niu-power.com. | |||||||
| Order Data | ||||||||
| TYPE 型号 | Fuse Voltage 保险丝电压 | Fuse Current 保险丝电流 | Cable Spec 线缆规格 | Connector 连接器 | ||||
| A6-B-Mini-1500-02 | DC 1500V | 2A | DC 1500V, 12AWG/2.5mm2 | DC 1500V A4 Max Connector Or Customized |
||||
| A6-B-Mini-1500-04 | 4A | DC 1500V, 12AWG/2.5mm2 | ||||||
| A6-B-Mini-1500-05 | 5A | DC 1500V, 12AWG/2.5mm2 | ||||||
| A6-B-Mini-1500-06 | 6A | DC 1500V, 12AWG/2.5mm2 | ||||||
| A6-B-Mini-1500-08 | 8A | DC 1500V, 12AWG/2.5mm2 | ||||||
| A6-B-Mini-1500-10 | 10A | DC 1500V, 12AWG/2.5mm2 | ||||||
| A6-B-Mini-1500-15 | 15A | DC 1500V, 12AWG/4mm2 | ||||||
| A6-B-Mini-1500-20 | 20A | DC 1500V, 12AWG/4mm2 | ||||||
| A6-B-Mini-1500-25 | 25A | DC 1500V, 12AWG/4mm2 | ||||||
| A6-B-Mini-1500-30 | 30A | DC 1500V, 10AWG/6mm2 | ||||||
| A6-B-Mini-1500-32 | 32A | DC 1500V, 10AWG/6mm2 | ||||||
| Remark: Customized options available, for more information, please contact NIU Power team: Marketing@niu-power.com. | ||||||||
