Product Overview

A5-3P(50A) / A5-5P(50A) series are widely used in string inverters.The products use high quality weather resistance materials that guarantee long-term reliability. The connectors could use 2.5 mm2 to 6mm2 cables. The lower contact resistance and higher current transfer capability ensure high product efficiency. IP68 water-proof rating and wide operating temperature range from -40 °C to 85 °C.



A5-3P(50A)

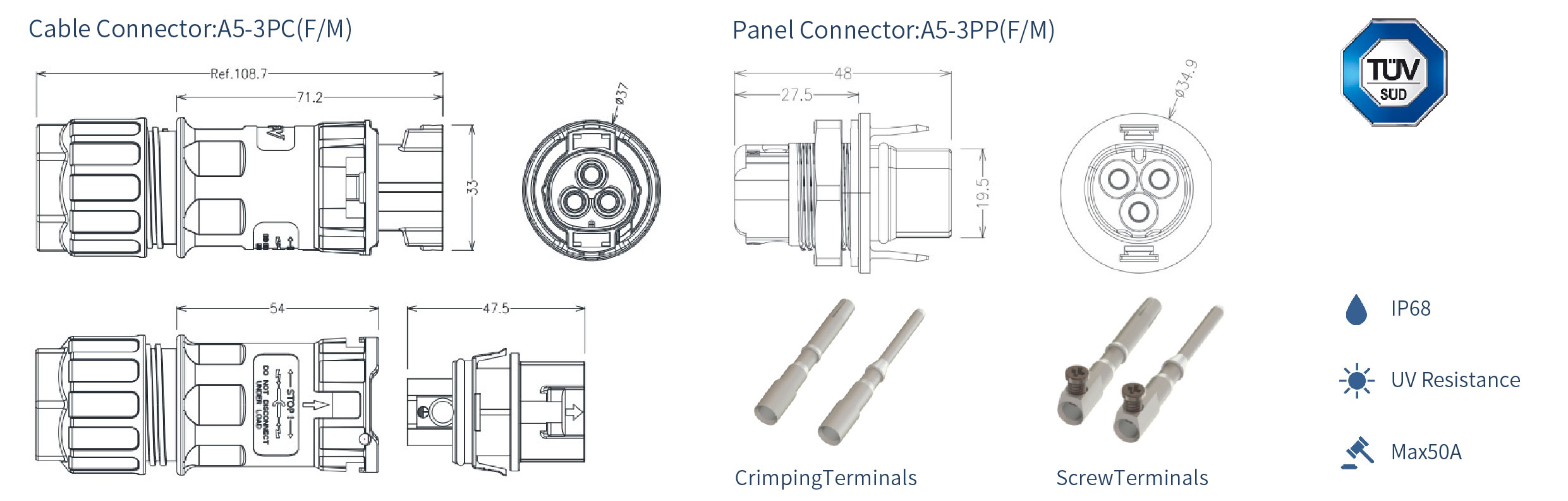

dsp 03 2

Technical Data：
Rated Voltage AC 500V
Terminals 3pin:PE+2P
Certified & Qualified TUV
Rated Current 25A for 3*2.5mm2  cables
40A for 3*4.0mm2  cables 50A for 3*6.0mm2  cables
Ambient Temp -40℃  up to + 85℃
Contact Resistance ≤1mΩ
Waterproof IP IP68
Voltage Test 4000V
Protection Degree Class II
Fire Resistance UL94-V0
Material PPO/ Copper Alloy/PA
Order Data：
Part NO Connector Type Conduct Terminals Cable OD Range Package
A53101 A5-3PCF
Female Connector for cable		 Crimping terminals
for 3*2.5mm2    ~  3*6.0mm2    cable		 11±1mm 10pcs/bag
A53102 13±1mm 10pcs/bag
A53103 15±1mm 10pcs/bag
A53104 Screw terminals
for 3*2.5mm2  ~ 3*6.0mm2  cable		 11±1mm 10pcs/bag
A53105 13±1mm 10pcs/bag
A53106 15±1mm 10pcs/bag
A53111 A5-3PCM
Male Connector for cable		 Crimping terminals
for 3*2.5mm2  ~ 3*6.0mm2  cable		 11±1mm 10pcs/bag
A53112 13±1mm 10pcs/bag
A53113 15±1mm 10pcs/bag
A53114 Screw terminals
for 3*2.5mm2  ~ 3*6.0mm2  cable		 11±1mm 10pcs/bag
A53115 13±1mm 10pcs/bag
A53116 15±1mm 10pcs/bag
A53121 A5-3PPF
Female Connector for Panel		 Crimping terminals
for 3*2.5mm2  ~ 3*6.0mm2  cable		 – 10pcs/bag
A53122 – 10pcs/bag
A53123 – 10pcs/bag
A53124 Screw terminals
for 3*2.5mm2  ~ 3*6.0mm2  cable		 – 10pcs/bag
A53125 – 10pcs/bag
A53126 – 10pcs/bag
A53131 A5-3PPM
Male Connector for Panel		 Crimping terminals
for 3*2.5mm2  ~ 3*6.0mm2  cable		 – 10pcs/bag
A53132 – 10pcs/bag
A53133 – 10pcs/bag
A53134 Screw terminals
for 3*2.5mm2  ~ 3*6.0mm2  cable		 – 10pcs/bag
A53135 – 10pcs/bag
A53136 – 10pcs/bag
Part NO Name IP Material PIC Package
A53401 Female Connector
water proof Plug		 IP68 PPO+Rubber 10pcs/bag
A53402 Male Connector
water proof Plug		 IP68 PPO 10pcs/bag
A53403 Female Connector
dust proof Plug		 IP51 TPE 10pcs/bag
A53404 Male Connector
dust proof Plug		 IP51 TPE 10pcs/bag
Remark:The harness could match 3*2.5mm2 to 3*6mm2 cables, they could be wildly used in different applications. The harness series connectors have IP68 water-proof rating and can be used in a wide operating temperature range from -40 °C to 85 °C.Customized options available, for more information, please contact NIU Power sales team: Marketing@niu-power.com



A5-5P(50A)

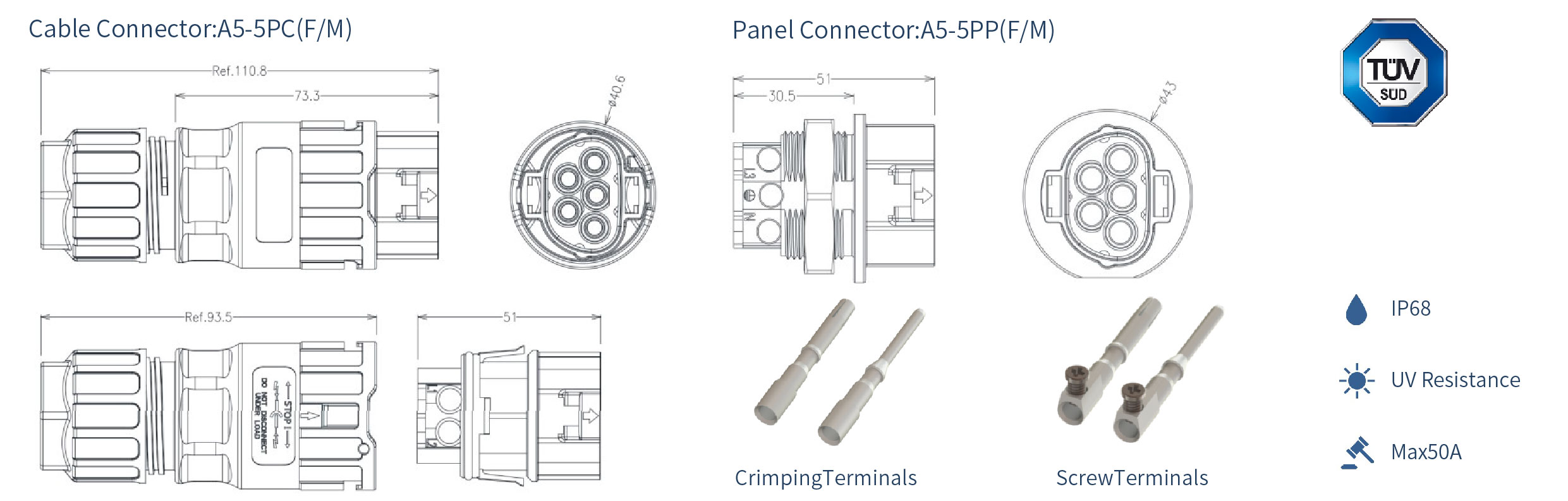

dsp 04 1

Technical Data：
Rated Voltage AC 500V
Terminals 5Pin:PE+4P
Certified & Qualified TUV
Rated Current 25A for 3*2.5mm2  cables
40A for 3*4.0mm2  cables 50A for 3*6.0mm2  cables
Ambient Temp -40℃  up to + 85℃
Contact Resistance ≤1mΩ
Waterproof IP IP68
Voltage Test 4000V
Protection Degree Class II
Fire Resistance UL94-V0
Material PPO/ Copper Alloy/PA
Order Data：
Part NO Connector Type Conduct Terminals Cable OD Range Package
A55101 A5-5PCF
Female Connector for cable		 Crimping terminals
for 5*2.5mm2    ~  5*6.0mm2    cable		 13±1mm 10pcs/bag
A55102 15±1mm 10pcs/bag
A55103 17±1mm 10pcs/bag
A55104 Screw terminals
for 5*2.5mm2  ~ 5*6.0mm2  cable		 13±1mm 10pcs/bag
A55105 15±1mm 10pcs/bag
A55106 17±1mm 10pcs/bag
A55111 A5-5PCM
Male Connector for cable		 Crimping terminals
for 5*2.5mm2  ~ 5*6.0mm2  cable		 13±1mm 10pcs/bag
A55112 15±1mm 10pcs/bag
A55113 17±1mm 10pcs/bag
A55114 Screw terminals
for 5*2.5mm2  ~ 5*6.0mm2  cable		 13±1mm 10pcs/bag
A55115 15±1mm 10pcs/bag
A55116 17±1mm 10pcs/bag
A55121 A5-5PPF
Female Connector for Panel		 Crimping terminals
for 5*2.5mm2  ~ 5*6.0mm2  cable		 – 10pcs/bag
A55122 – 10pcs/bag
A55123 – 10pcs/bag
A55124 Screw terminals
for 5*2.5mm2  ~ 5*6.0mm2  cable		 – 10pcs/bag
A55125 – 10pcs/bag
A55126 – 10pcs/bag
A55131 A5-5PPM
Male Connector for Panel		 Crimping terminals
for 5*2.5mm2  ~ 5*6.0mm2  cable		 – 10pcs/bag
A55132 – 10pcs/bag
A55133 – 10pcs/bag
A55134 Screw terminals
for 5*2.5mm2  ~ 5*6.0mm2  cable		 – 10pcs/bag
A55135 – 10pcs/bag
A55136 – 10pcs/bag
Part NO Name IP Material PIC Package
A55401 Female Connector
water proof Plug		 IP68 PPO+Rubber 10pcs/bag
A55402 Male Connector
water proof Plug		 IP68 PPO 10pcs/bag
A55403 Female Connector
dust proof Plug		 IP51 TPE 10pcs/bag
A55404 Male Connector
dust proof Plug		 IP51 TPE 10pcs/bag
Remark:The harness could match 5*2.5mm2 to 5*6mm2 cables, they could be wildly used in different applications. The harness series connectors have IP68 water-proof rating and can be used in a wide operating temperature range from -40 °C to 85 °C.Customized options available, for more information, please contact NIU Power sales team: Marketing@niu-power.com
