A4 P Series Panel Solar Connector
NIU Power | PV Connectors
Packaging Capacity
Incoterm
Model No.
A4 P Series Panel Solar Connector
A4 P Series Panel Solar Connector

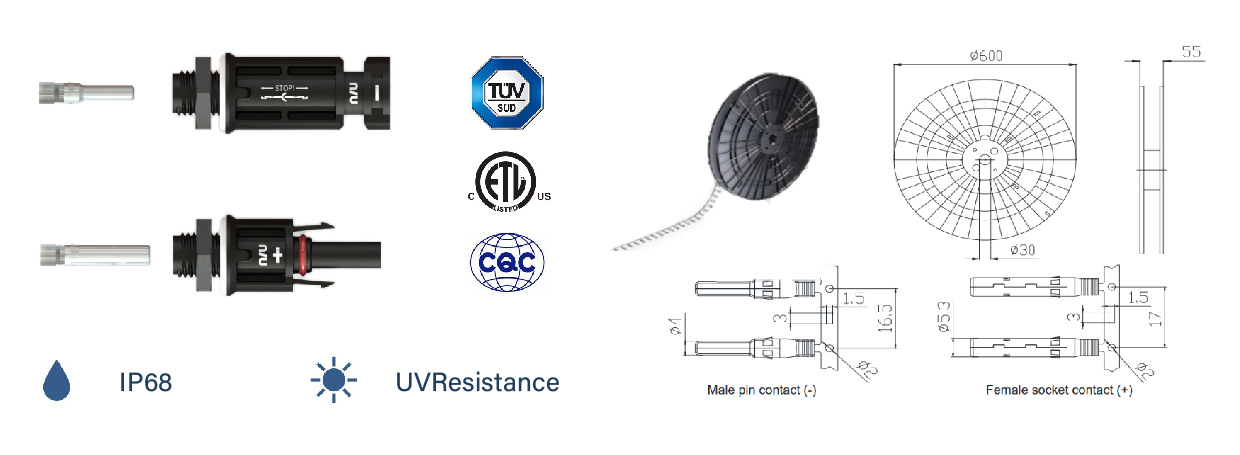

A4 P Series connectors use high quality weather resistance materials that guarantee long-term reliability. A4 P could match 2.5 mm2 to 16mm2 cables, it could be wildly used in different applications. The lower contact resistance and higher current transfer capability ensure high product efficiency. A4 P connectors have IP68 water-proof rating and can be used in a wide operating temperature range from -40 °C to 85 °C.
| Technical Data | |||||
| Rated Voltage | IEC 1500V & UL1500V | ||||
| Certification | IEC 62852; UL 6703 | ||||
| Rated Current | Max 70A | ||||
| Ambient Temp | -40℃ up to +85℃ | ||||
| Contact Resistance | ≤0.25mΩ | ||||
| Pollution Degree | Class II | ||||
| Protection Degree | Class II | ||||
| Fire Resistance | UL94-V0 | ||||
| Rated Impulse Voltage | 16KV | ||||
| Order Data | ||||||||||||||
| A4 Series Panel Connectors(Compatible with Staubli MC4 & EVO2) | ||||||||||||||
| Part NO | Model | Components | Cable Spec | Current | Color | Remark | ||||||||
| A4P021 | A4 P 6112 | Housings | A4-PM-12 | OD:6.0mm~8.0mm | 25A for 2.5mm2 | Black | Compatible with Staubli MC4&EVO2 | |||||||
| A4-PF-12 | ||||||||||||||
| Terminals | A4-MU | 14AWG / 2.5mm2 | ||||||||||||
| A4-FU | ||||||||||||||
| A4P022 | A4 P 7122 | Housings | A4-PM-12 | OD:6.0mm~8.0mm | 35A for 4mm2 40A for 6mm2 | |||||||||
| A4-PF-12 | ||||||||||||||
| Terminals | A4-MU | 12AWG~10AWG/4mm2~6mm2 | ||||||||||||
| A4-FU | ||||||||||||||
| A4-FU | ||||||||||||||
| A4P025 | A4 P 9142 | Housings | A4-PM-12 | OD:6.0mm~8.0mm | 50A for 10mm2 | |||||||||
| A4-PF-12 | ||||||||||||||
| Terminals | A4-MO-10 | 8AWG/10mm2 | ||||||||||||
| A4-FO-10 | ||||||||||||||
| A4P026 | A4 P 10152 | Housings | A4-PM-12 | OD:6.0mm~8.0mm | 70A for 16mm2 | |||||||||
| A4-PF-12 | ||||||||||||||
| Terminals | A4-MO-16 | 6AWG/16mm2 | ||||||||||||
| A4-FO-16 | ||||||||||||||
| Remark: Customized options available, for more information, please contact NIU Power team: Marketing@niu-power.com. | ||||||||||||||
